Products

Thruster Technologies

High Capacity Combustors

It's flexibility and long list of features enable it to be configured for high pressure, low pressure, or a combination of high and low pressure applications.

  • Single or multi stage burner configurations available
  • Flow 100MSCFD - 1MMSCFD
  • inlet pressure as low as 1 oz/in^2 up to 120 psi
  • Profire 2100 BMS or 3100 Burner Management System
  • All Stainless Steel Construction
  • High Turndown Ratio
  • Ceramic fiber insulation
V1MM Flow Chart
Thruster Technologies
Thruster Technologies

Custom Combustors

Have a difficult project? Let our experienced engineering staff custom design your next combustor project. Whether its a simple combustor with Inlet Air Arrestors, or a full custom electronics system, we are here to help make sure your application is a success!

  • Single or multi stage burner configurations available
  • Flow 100MSCFD - 1MMSCFD
  • Inlet pressure as low as 1 oz/in^2 up to 120 psi
  • Profire 2100 BMS or 3100 Burner Management System
  • Custom PLC control system
  • All Stainless Steel Construction
  • High Turndown Ratio
  • Ceramic fiber insulation
  • Inlet Air Flame Cells
  • High Capacity Bird Screens
Thruster Technologies

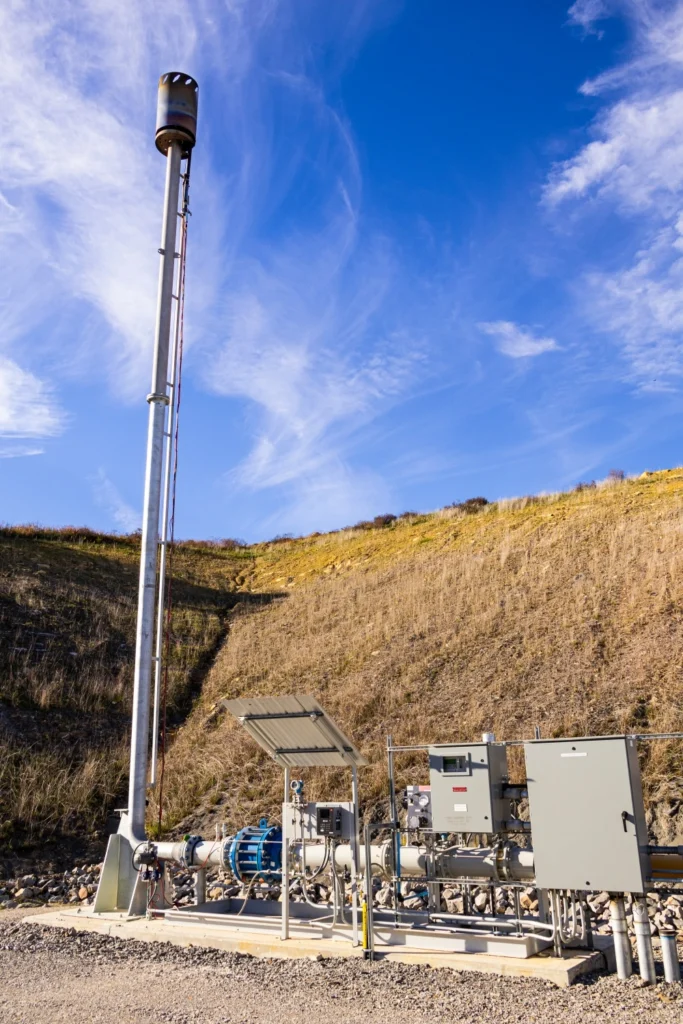

Flares

Can be manufactured from all stainless steel or carbon steel. Specialty designed multi head units for low pressure flows and special gases.

  • 20'-60' Tall
  • 3"-8" Diameter
  • Flow 20MSCFD - 15 MMSCFD
  • Inlet pressure as low as 4"w.c.up to 150 psi
  • Profire 1300 BMS or 2100 Burner Management System
  • Serviceable Pilots (pilot assembly lowers to ground for easy maintenance)
  • Solar Panel capable
1
1
1 (2)
1 (1)

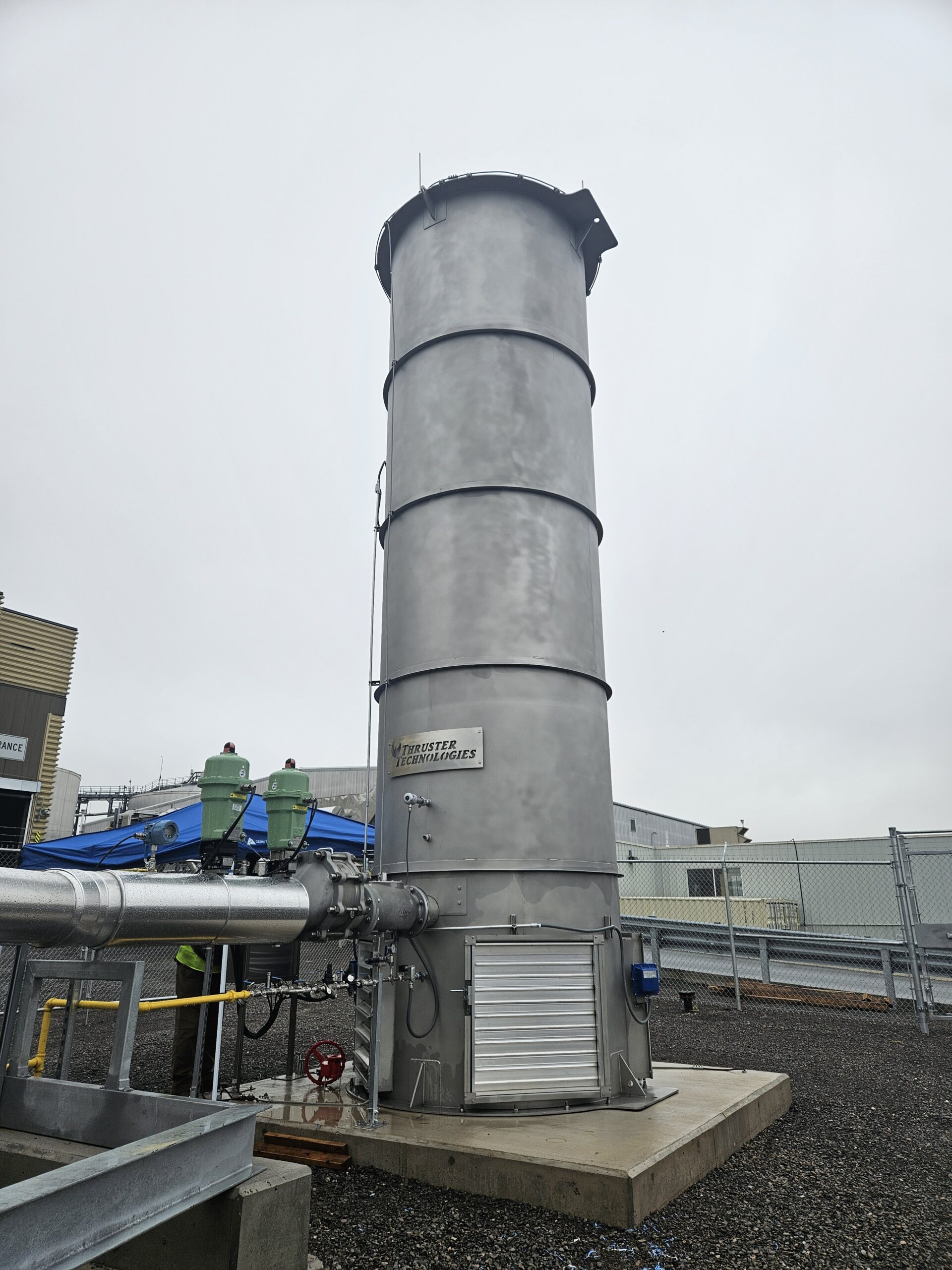

Biogas (Landfill, Wastewater, Etc.)

Thruster Technologies is experienced in designing and manufacturing custom Enclosed Flares and Thermal Oxidizers for a wide range of applications such as mine gas, landfill, digester, and other non-motor fuel vapors.

  • Capacities up to 136 MMBTU/HR
  • Inlet pressure as low as 1 oz/in^2 up to 120 psi
  • Profire 3100 or Custom PLC based Burner Management Systems
  • High Turndown Ratio
  • Stainless Steel Burners
  • Reliable low consumption pilot
  • Single and multi stage burner configurations
  • Ceramic fiber insulation
Thruster Technologies
Thruster Technologies

Skid Packages

To reduce field installation time and cost Thruster Technologies offers an optional Skid Package. Take any one of our Combustors and combine it with any of our knock-out pots preassembled and mounted on a Stainless Steel skid.

Skid has built in forklift pockets for confident lifting and placing in the perfect location. This package is the right choice if your planning on moving equipment from one location to another.

Thruster Technologies

Shown: V1-20 with Auto High/Low Pressure KO Pot

Manual Scrubber/KO pot

It's top inlet/outlet enable it to be installed in any position along with it's adjustable legs make it an ideal solution for just about any situation

  • 12" dia
  • 3" Top mounted inlet/outlet
  • Inlet pressure to 15 psi
  • All stainless steel construction
  • Internal mesh separator
  • Adjustable legs
Thruster Technologies

Automatic Scrubber/KO pots

At less than 200 lbs total, these scrubbers can be moved anywhere with no heavy equipment. liquid separation and evacuation is totally automatic. Maintenance Free Design, No electrical, no pumps to maintain, no mess.

Simply hookup the gas and drain connections and your in business!

  • Automatic discharge of condensate
  • 3"-4" inlet/outlet
  • Stainless steel construction
  • 100 psi max. pressure
  • Kimray Valves and floats
  • Meets Codes ASME.B.31.4
  • Certified welded to meet API 1104
  • No moving mechanical parts to maintain
Thruster Technologies

Auto Low Pressure KO Pot

Thruster Technologies

Auto High / Low Pressure KO Pot
